Micropol Military ODF

Micropol Military ODF

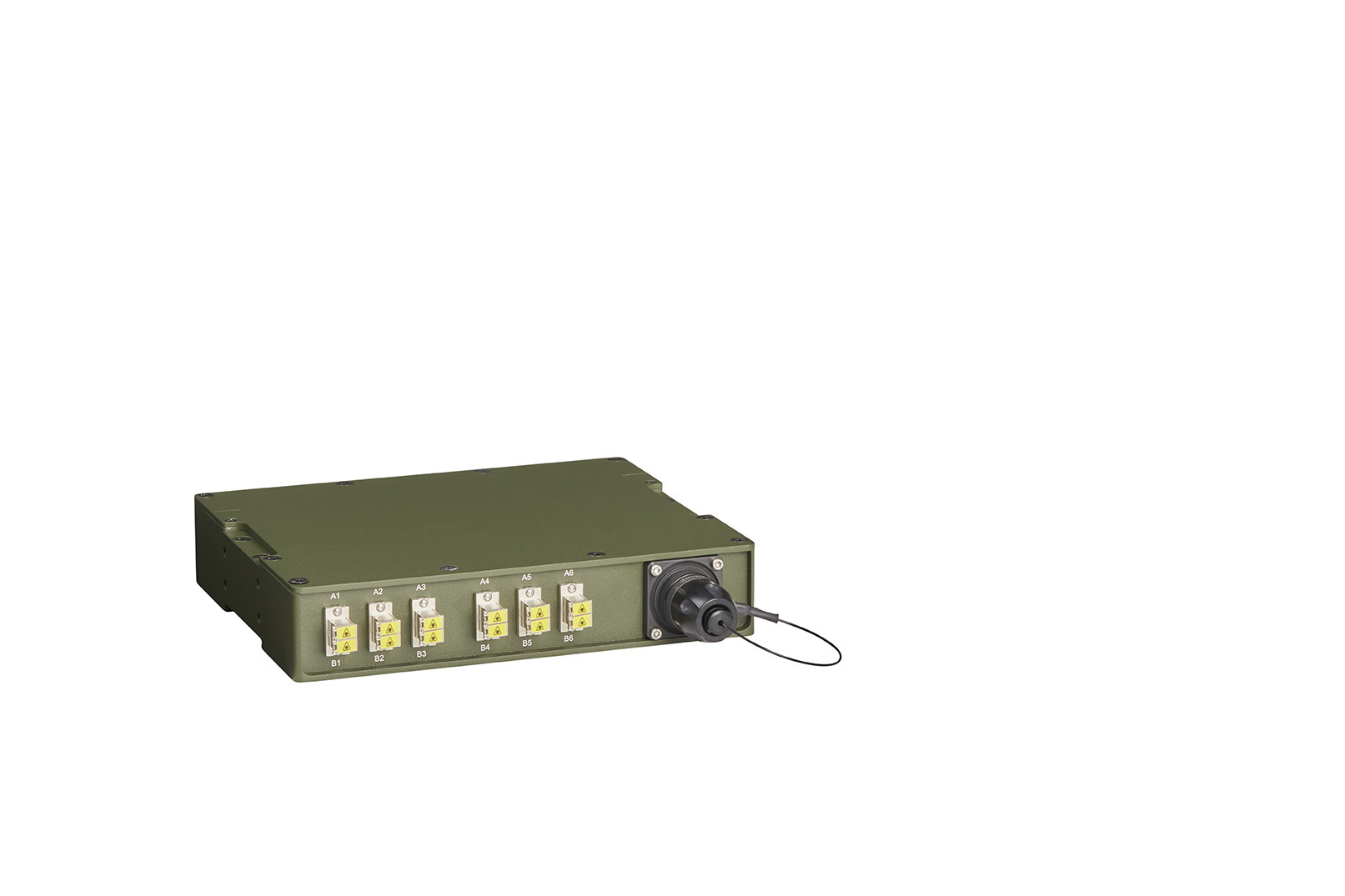

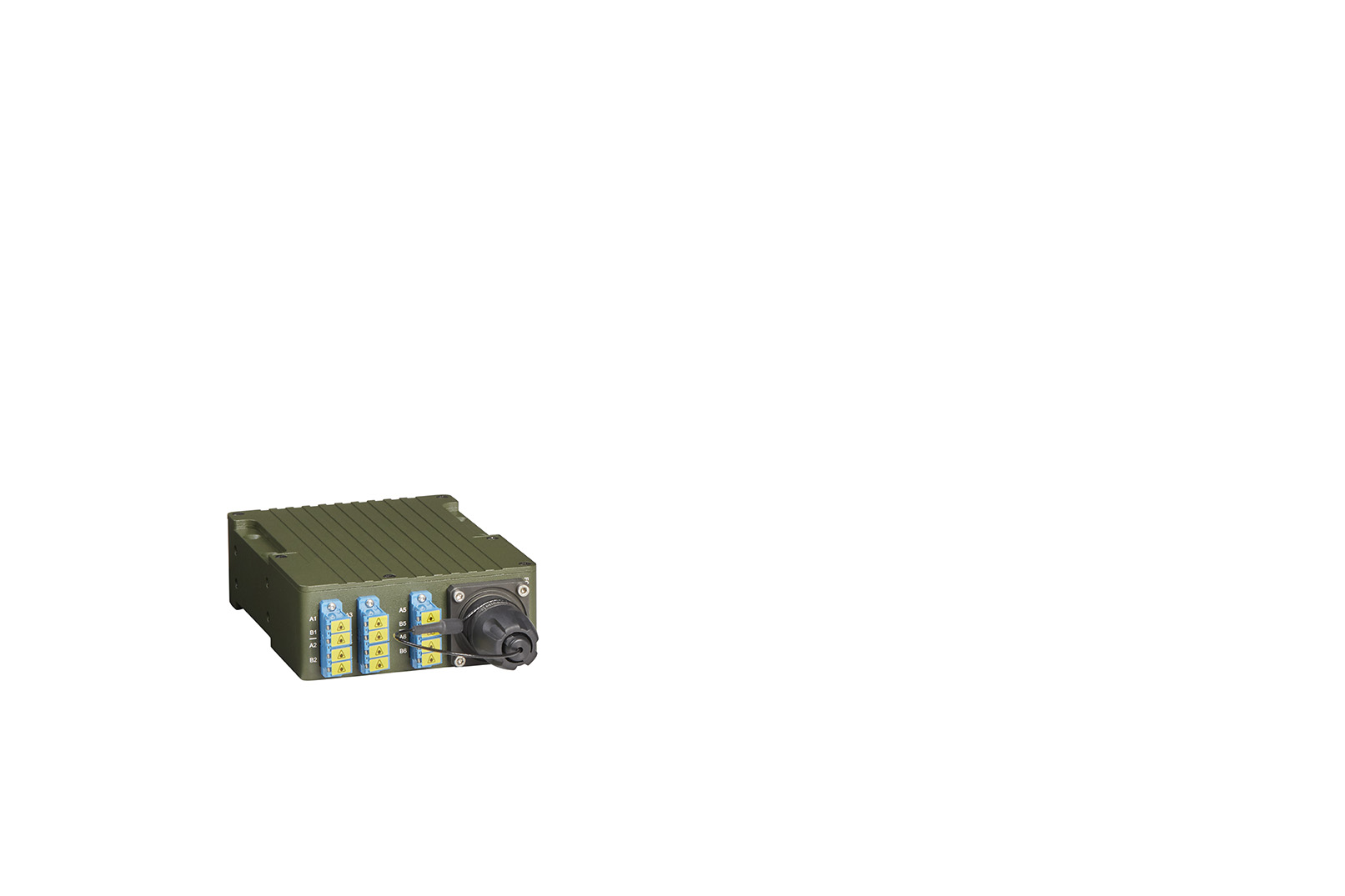

Micropol Military ODFs (Optical Distribution Frame) are used as connection panels in fiber optic cable systems


Contact us for more information

Rugged ODF boxes for rough conditions and vibrations

Micropol Military ODFs (Optical Distribution Frame) are used as connection panels in fiber optic cable systems. We manufacture and supply customized cable systems with rugged, high-quality field cables that can resist shaky environments with a lot of vibrations, as well as Antarctic ice and Saharan heat.

Micropol has been developing expanded beam technology since the late 1980s. We offer a number of different types of expanded beam connector, both for Single-Mode and Multi-Mode. They are all hermaphroditic, so they are always connected correctly, without an adapter.

Dirt, vibrations or hard hits

We have large stocks of field cables, cable winders and rugged connectors. Regardless of whether you require cable fittings, chassis fittings or a tailor-made application that contains them both we have short delivery times. We also develop and design connectors suitable for your particular application.



Features

  • Operating temperature°C -55 to +85°C
  • IP67
  • Tailor-made
  • Vehicle approved
  • Modular
  • EMC/EMI

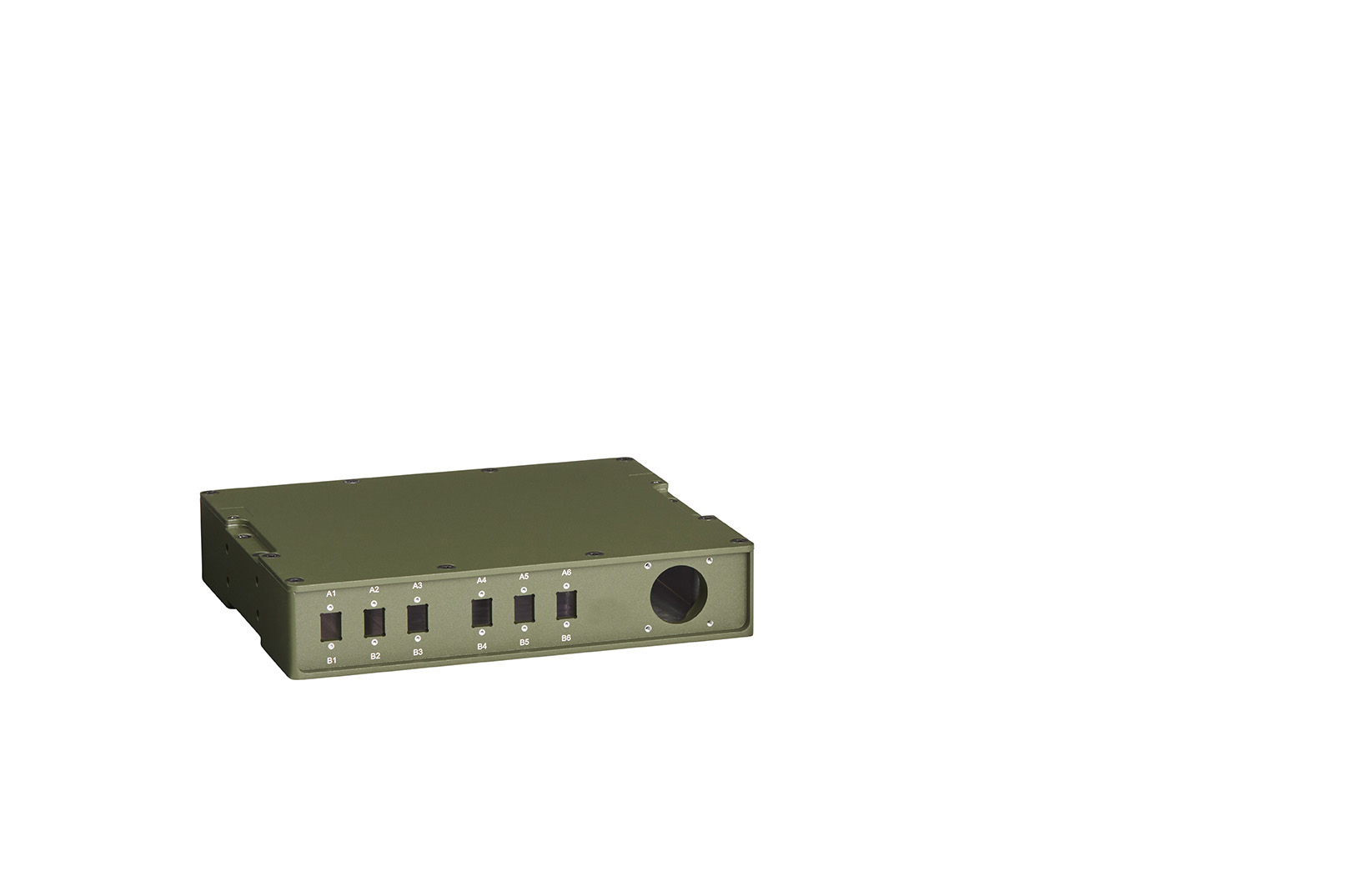

ODF Panel

Measurements box Measurements
equipped box (max)
Weight Material Colour Fibers
19”/2 180x220x44 mm 230x220x44 mm 1000g SS-EN 6082 (Alu) Green
RAL 6031-F9 2-12
2-12
19”/4 140x110x44 mm 190x110x44 mm 530g SS-EN 6082 (Alu) Green
RAL 6031-F9 2-12
2-12
