Designed to be future-proof

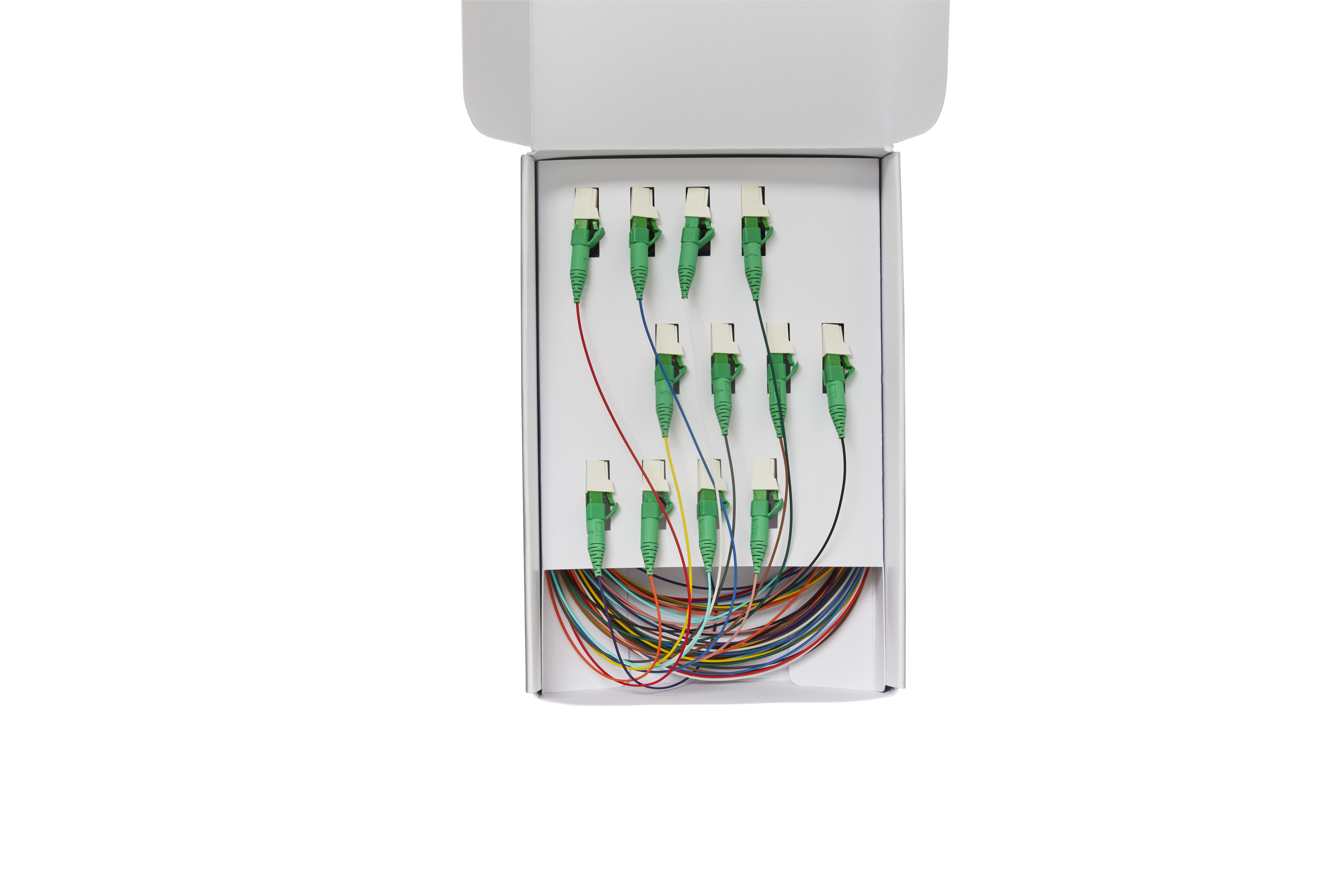

Micropols pigtails are designed to deliver optical performance to suit the demands of the future. The product is well-protected in our packaging. We can also arrange the pigtails in the order most suited for our customer. This is done to make installation quick and easy.
We manufacture pigtails in any length, type of fiber and connector. Micropol has the capacity to manufacture both small and large quantities.
All our pigtails come with an optical performance label on the packaging. We guarantee an insertion loss <0,3dB and return loss >55 dB (UPC).
Features
- Customized lengths on request
- Insertion loss < 0.3 dB
- Return loss > -55 dB (UPC)
- Return loss > -65 dB (APC)
- 12 unique colors
| Insertion loss | < 0.3 dB |
| Return loss |
> -55 dB (UPC) > -65 dB (APC) |
| Colours |
Aqua Black Blue Brown Green Grey Orange Pink Red Violet White Yellow |
| Ferrule material | Zirconia |
| Cable type | Tight buffer 0,9 mm |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +70°C |
